Cu-Beam Up suspended light
An ultra-wide distribution of powerful up-light.
Other colours available, contact us for more details.
• Heat pipe technology maintains LED brightness
• A custom lens focuses 7800 lumens. From one LED.
• Custom-built driver controls the light's functions
£1,500.00
£1,250.00 excluding VAT
Explore: Key features | Key technology | Additional features | Specifications | FAQs | Choose your model
Key features
Powerful, fully-adjustable up-light. From a single fixture.
Focuses a single light source to evenly cast an ultra-wide, dimmable pool of ambient up-light across open spaces.
Fluorescent lighting is flawed. LEDs can underperform.
Fluorescent lighting can be inefficient, it wastes light and uses costly-to-replace bulbs, while LEDs can suffer from overheating, affecting their longevity and brightness.
Key technology
Heat pipe technology maintains LED brightness
Continuous cooling cycle increases the single LED's longevity with no loss or deterioration of light quality.
A custom lens focuses 7800 lumens. From one LED.
The custom-engineered lens optimises and maximises the single high-power LED, for an even spread of powerful, ambient light, whatever the task.
High efficacy
A custom-engineered lens combined with effective cooling means that each fixture runs at 92lm/W (at 4000K).
Additional features
Brightness means lightness
Each wing of the Cu-Beam Up light is made of 37 lightweight aluminium fins, so it weighs just 2.9kg.
No glare
By putting light precisely where it needs to be, Cu-Beam Up lights prevent wasted light in all directions and reduce eye strain.
No flicker
Custom-built drivers control the light's functions. They manage power, voltage fluctuations and the ratio of up light.
More light
High-power single LEDs and a custom-engineered lens provide powerful light that can illuminate a wide area.
Compact and lightweight
Cu-Beam Up measures 720mm across, weighing just 2.9kg. The unit 'floats' in space for minimal spatial intrusion.
Specifications
-
Weight
2.9 kg
-
Colour temperature
4,000 K
-
Light source
Chip on board LEDs
-
CRI
80 minimum
-
Rated power
57 W
-
Light output
7,800 lm
-
Luminous efficacy
92 l/W
-
LED life time
180,000 hrs
-
Beam angle
160 °
-
Frequency
50/60 hz
-
Standby power consumption
0.5 W
-
Length
720 mm
-
Width
130 mm
-
Height
203 mm
Useful documents
Frequently asked questions
What is the best way to clean Cu-Beam Up?
Use a microfibre cloth, or solvent- and moisture-free compressed air canister, to clean the appliance. Always ensure the appliance is turned off before any cleaning.
Can I use the Cu-Beam Up outside?
The appliance is designed for dry, indoor locations only.
Operating environment range 0°C (32°F) to 40°C (104°F) and 10-95% RH non-condensing.
Which dimmer products is Cu-Beam Up compatible with?
This appliance is only compatible with DALI-compliant dimmer products.
Cu-Beam Up suspended light
£1,500.00
£1,250.00 excluding VAT
Choose your model
.jpeg?$responsive$)
Dyson Cu Beam Up suspended light
An ultra-wide distribution of powerful up-light.
• Dimensions: L 720 x W 130 x H 203 mm
£1,500.00
£1,250.00 excluding VAT

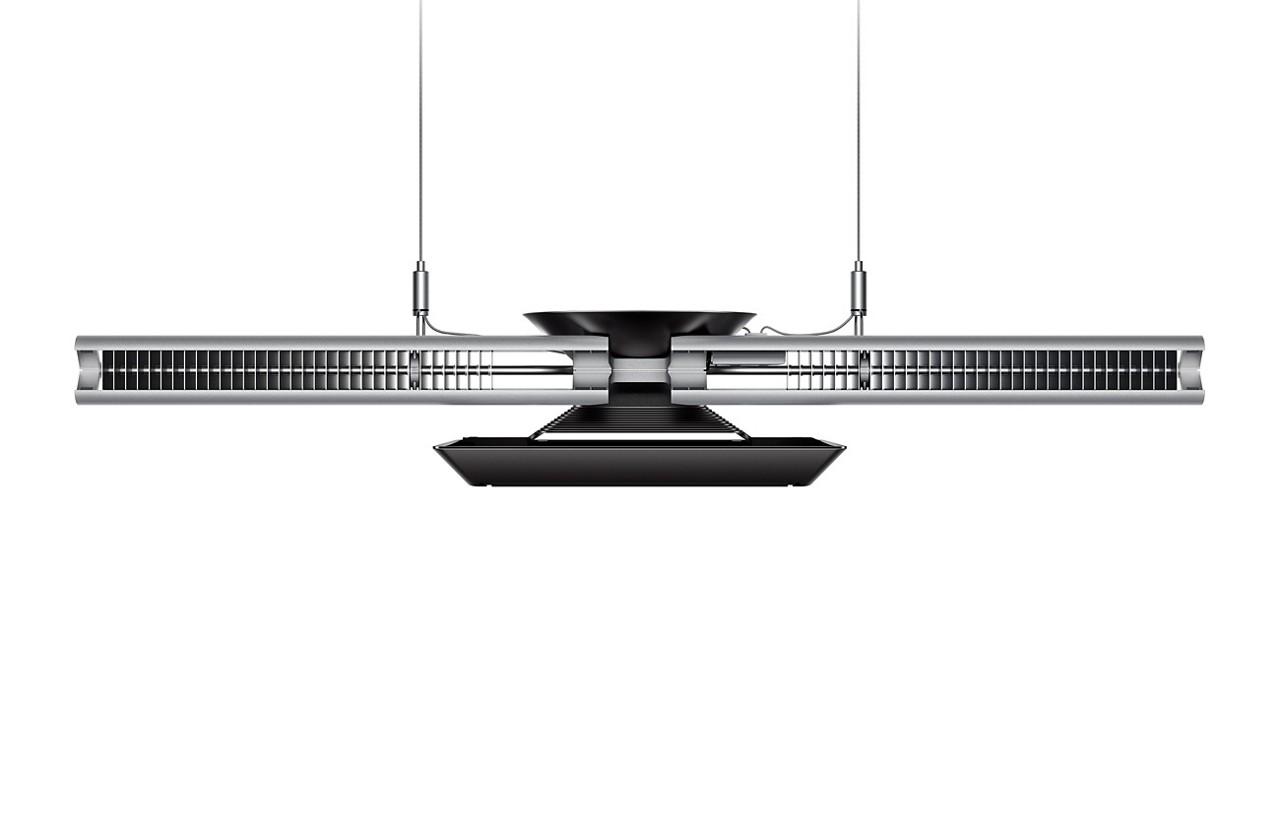

Dyson Cu-Beam Duo suspended light
Powerful and precise. The only fully flexible up and down-light.
• Dimensions: L 725 x W 206 x H 97mm
£1,750.00
£1,458.33 excluding VAT
/specifications-and-docs/Lighting_Cu-BeamDown_S-D_Product-card.jpg?$responsive$)
Dyson Cu-Beam Down suspended light
Powerful, focused light. From one LED. In a single fixture.
• Dimensions: L 720 x W 130 x H 170 mm
£1,500.00
£1,250.00 excluding VAT
Explore the Dyson lighting range
